Hjemmebiograf tuemose`s hjemme biograf 15000

4.665 visninger | Oprettet:
Bedømmelse

Du kan først stemme, når din egen av-enhed er oprettet og stemt ind. Opret din egen av-enhed

Stemmefordeling (3)
michael. t
michael. t
| 0 år | Oprettet: 3. aug 2005
AV-enheder (1)
Forumemner (20)


Følger (11) Følgere (10)

Hjemmebiograf tuemose`s hjemme biograf

Udfordringer
0
0
1
Udfordr
Prisklasse:
15000
Forstærker/reciever:
Harman Kardon: AVR 132

SPECIFICATIONS:
Audio
Stereo Mode
Continuous Average Power (FTC) per Channel : 40 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
Five-Channel Surround Modes, Power per Individual Channel,
All Channels Operating at Full Power :
Front L & R Channels : 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel : 30 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels (L & R Side, Back) : 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Sensitivity/Impedance, Linear (High-Level) : 200mV/47k ohms
Signal-to-Noise Ratio (IHF-A) : 95dB
Surround System Adjacent Channel Separation :
Dolby® Pro Logic® I and II : 40dB
Dolby® Digital : 55dB
DTS® : 55dB
Frequency Response at 1W (+0dB, –3dB) : 10Hz – 100kHz
High Instantaneous Current Capability (HCC) : ±25 Amps
Transient Intermodulation Distortion (TIM) : Unmeasurable
Slew Rate : 40V/µsec
FM Tuner
Frequency Range : 87.5 – 108.0MHz
Usable Sensitivity : IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio : Mono/Stereo 70/65dB
Distortion : Mono/Stereo 0.15/0.3%
Stereo Separation : 35dB @ 1kHz
Selectivity : ±400kHz, 70dB
Image Rejection : 80dB
IF Rejection : 90dB
AM Tuner
Frequency Range : 522 – 1620kHz
Signal-to-Noise Ratio : 45dB
Usable Sensitivity : Loop 500µV
Distortion : 1kHz, 50% Mod 0.8%
Selectivity : ±10kHz, 30dB
Video
Television Format : PAL/NTSC
Input Level/Impedance : 1Vp-p/75 ohms
Output Level/Impedance : 1Vp-p/75 ohms
Video Frequency Response :
Composite and S-Video : 10Hz – 8MHz (–3dB)
Component Video : 10Hz – 50MHz (–3dB)
General
Power Requirement : AC 220-240V / 50Hz
Power Consumption : 72W idle, 580W maximum (5 channels driven)
Unit Dimensions :
Width : 440mm
Height : 165mm
Depth : 382mm
Unit Weight : 9.6kg
Tuner
Cd-afspiller
Pladespiller
Båndoptager
DVD/Video
Harman Kardon: DVD 27

General
Applicable Discs : Disc Formats: 5-inch (12cm) or 3-inch (8cm) DVD-Movie, Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, VCD, CD, CD-R, CD-RW or MP3 discs
Region Code: DVD-Movie discs with Region Code 2 or 0 only
DVD-Layers: Single side/single layer, single side/dual layer, dual side/dual layer
Audio Formats: Linear PCM, MPEG, Windows Media® 8, Dolby® Digital or DTS® audio discs
Still-Image Format: JPEG
Video Signal System : PAL/NTSC
Composite Video Output : 1V p-p/75 ohms, sync negative polarity
S-Video Output : Y/Luminance: 1V p-p/75 ohms, sync negative polarity
C/Chrominance: 0.286V p-p
Component Video Output : Y: 1V p-p/75 ohms, sync negative polarity
Pr: 0.7V p-p/75 ohms
Pb: 0.7V p-p/75 ohms
Analog Audio Output : 2Vrms (1kHz, 0dB)
Frequency Response : DVD (Linear PCM): 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
DVD (Linear PCM): 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
CD: 2Hz – 20kHz +0/–0.5dB
Signal-to-Noise Ratio : 110dB (A-weighted)
Dynamic Range : DVD: 100dB (18-bit)/105dB (20-bit)
CD/DVD: 96dB (16-bit)
Total Harmonic Distortion : DVD/CD: 0.0025% at 1kHz
Wow and Flutter : Below Measurable Limits
Power Requirement : 110 – 240VAC/50 – 60Hz
Power Consumption : 1 Watt (On/Standby)/11 Watts (Max)
Dimensions
(H x W x D) : 41mm x 440mm x 276mm
(2" x 17-3/10" x 11-1/4")
Weight : 6.0 lb (2.7kg)
Carton Dimensions (H x W x D) : (127mm x 365mm x 508mm)
(5" x 14-3/8" x 20" )
Shipping Weight (System, Accessories, Packing) : 4.0kg (8.8 lb)
Højttalere
FRONT: bowers & wilkins. dm 603 s3.

Description: "2½"-way vented-box loudspeaker. Drive-units: 1" (25mm) aluminum-dome tweeter, 6.5" (165mm) woven-Kevlar cone bass/midrange, 6.5" (165mm) aluminum-cone woofer. Crossover frequencies: 150Hz, 4kHz. Frequency response: 44Hz–22kHz, ±3dB on reference axis. Frequency range: –6dB at 34Hz and 42kHz. Dispersion within 2dB of response on reference axis: over 40° arc horizontal, over 10° arc vertical. Sensitivity: 90dB/2.83V/m. Impedance: 8 ohms nominal, 3 ohms minimum. Power handling: 25–150W into 8 ohms on unclipped program. Harmonic distortion: second and third harmonics, <1%, 55Hz–20kHz (90dB SPL, 1m). Maximum recommended cable impedance: 0.1 ohm.
Dimensions: 35.8" (910mm) H by 8" (204mm) W by 11.3" (287mm) D. Net weight: 42.9 lbs (19.5kg).
Finishes: Black Ash or Sorrento (light oak) vinyl, black cloth grille.

CENTER:bowers & wilkins. cc6 s2

Key Features
Speakers Function: Center
Peak Power Handling: 120 Watt
Construction: 3-Way
Technical Features
Frequency Reponse: 78 Hz - 20 kHz
Sensitivity: 89 dB
Impedance: 8 ohm
Design
Mounting: Bookshelf · On-Wall
Dimensions
Width: 17.72 in.
Depth: 10.83 in.
Height: 5.94 in.
Miscellaneous
Product ID: 20312010
More Information
Details: B&W CC6 S2 - Center channel speaker - 2.5-way
TV/Projektor

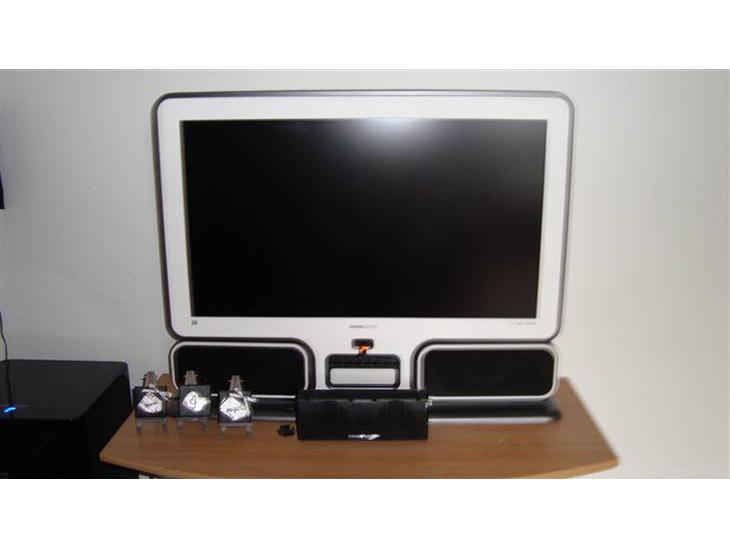

HANNSvibe.white 32"

Screen Size 32" (81.3 cm) diagonal inches
Aspect Ratio 16:9
Resolution 1366 × 768 Pixels
Brightness 500 cd/m²
Contrast 800:1
Viewing Angle 178° (H) / 178° (V)
Response Time 8 ms (Typ)
Display Color Supports 16.7M colors (Max.)
Active Area 697.6 × 392.2 mm
TV System PAL/SECAM (Analog RF)
Video System AV1 / AV3: EURO SCART, AV2: CVBS + S-Video, AV4: YPBPR, PC VGA Input, HDMI Interface Ver 1.1, 6 in 1 E-card: HANNSlounge only
Audio System AV1, AV2, AV3, AV4, HDMI&#65306; L/R Audio input, Earphone L/R output x 1, PC line in, L/R ouput, SPDIF ouput (optical output)
Stereo audio output 8W + 8W (Build-in)
AC Power 100 - 240 V&#12289;50/60 Hz
Power Consumption 1 W (Standby), 200 W (Max.)
Ekstra udstyr
TARA LABS OMNI HØJTALE KABEL
Bemærkninger
har lig faaet hentet de nye b&w DM 603 S2. for den da de spiller bare alt for godt... er meget imponeret over at en højtalere kan spille så godt.. det er mindre gulvhøjtalere men lyder jo som to kæmper der brøler højt.... elsker de højtalere mega og er de bedste højtalere jeg har hørt til dato;-)

der kommer nye billeder naar jeg har fundet en lejlighed igen
